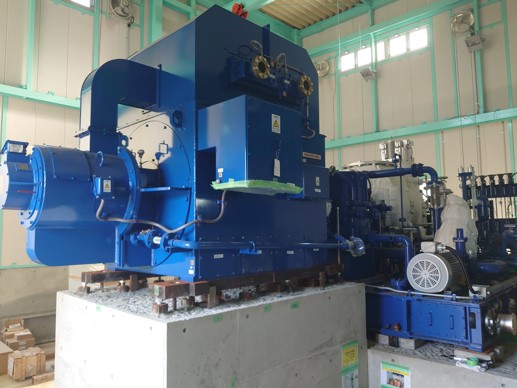

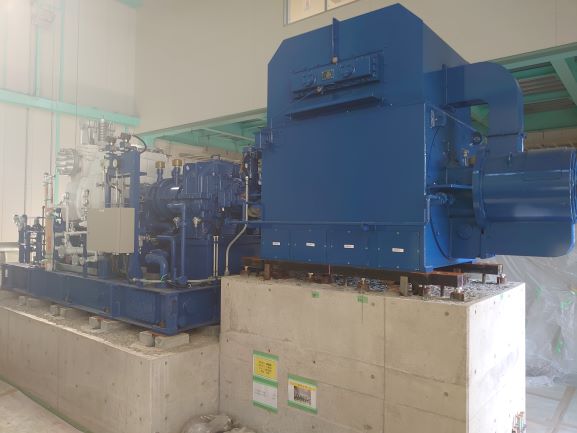

This is a complete, but partially installed biomass plant. Boiler (stoker) is designed to burn wood chips and bamboo chips.
NEW SHIN NIHON ZOKI CONDENSING TYPE, STEAM TURBINE GENERATOR NO. C5-R8-ER 1999KW 60HZ 6600VOLT
190.1 A, POWER RATION 0.92 (LATER) RPM 8193/1800 RPM, MAIN STEAM PRESSURE 4.0 MPa.G, MAIN STEAM TEMPERATURE 450 DEG.C
EXHAUST AIR PRESSURE 9.8 KPA.ABS, MAX. FIRST STEP EXTRACTION PRESSURE OUTER CONTROL 0.077 MPa.g
MAX. MAIN STEAM FLOW VOLUME 11.54 T/H. MAX. FIRST STEP EXTRACTION FLOW VOLUME 0 & 0.5 TO 1.28 T/H
MAX. EXHAUST AIR FLOW VOLUME 11.19 T/H (AT THE TIME OF 26.0 KPA.ABS)ALTERNATOR

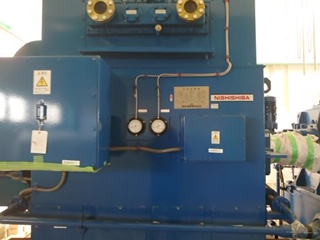

NISHISHIBA NTAKL; 2173KVA 4 POLE 6600V
POWER RATIO 0.92
CONTINUOUS
CURRENT 190.1A
FIELD MAGNET VOLTAGE 35 V
COOLANT TEMPERATURE 45 DEG.C
HEAT RESISTANCE ARMATURE WINDING 155(F)
FIELD MAGNET WINDING 155(F)
RPM 1800 MIN-1
FREQUENCY 60HZ
BRUSHLESS EXTRACTION OUTPUT 15KVA 30VOLT, CURRENT 289A V
FIELD MAGNET VOLTAGE 60V CURRENT 3.4A
PROTECTION METHOD IP44 COOLING MEHTOD IC81W
SPEC JEC-2130-2018 SERIAL NO. 741668A1A
8400KGS 2018 JULY

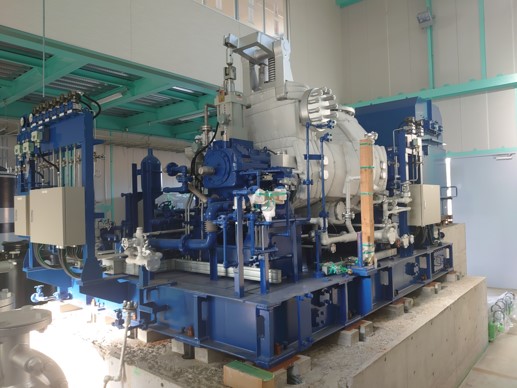

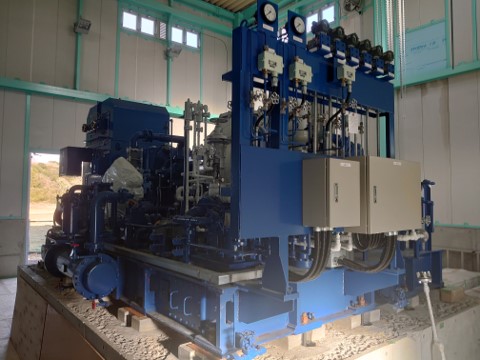

Turbine
MODEL C5-RB-ER
TURBINE FUNCTION WARRANTEE ALLOWANCE WITHIN 3%OPERATION CONDITION
TURBINE/ALTERNATOR RPM 8193/1800 (MIN.-1)
INLET STEAM PRESSURE 4.0 MPaG
INLET STEAM TEMPERATURE 450 DEG.C
INLET STEAM FLOW VOLUME 9720 KG/HR
STEAM EXTRACTION FLOW VOLUME 1160 KG/HR
STEAM EXTRACTION PRESSURE 9.8 kPaA
GENERATOR OUTPUT POWER 1999 KWFUNCTION LIST
OPERATION POINT 1/SPRINTER TIME (WITH EXTRACTION)MAIN STEAM
PRESSURE 4.0 MPaG
TEMPERATURE 450 DEG.C
FLOW VOLUME 9.72 T/HEXTRACTION (OUTER EXTRACTION)
PRESSURE 0.050 MPaG
TEMPERATURE 159 DEG.C
FLOW VOLUME 1.16 t/hEXTRACTION
PRESSURE 9.8 KPaA
TEMPERATURE 45.4 DEG.C
ENTHALPY 586.5 KCAL/KGGLAND LEAK STEAM VOLUME ABT. 0.1 t/h
EXTRACTION VOLUME ABT. 8.46 t/hOUTPUT POWER 1999KW
