22MW LM2500PE GE GTG For Sale
50Hz. Dual Fuel Zero Hour
Contact Milt Fyre 503-351-9898 or milt@rmaglobal.com

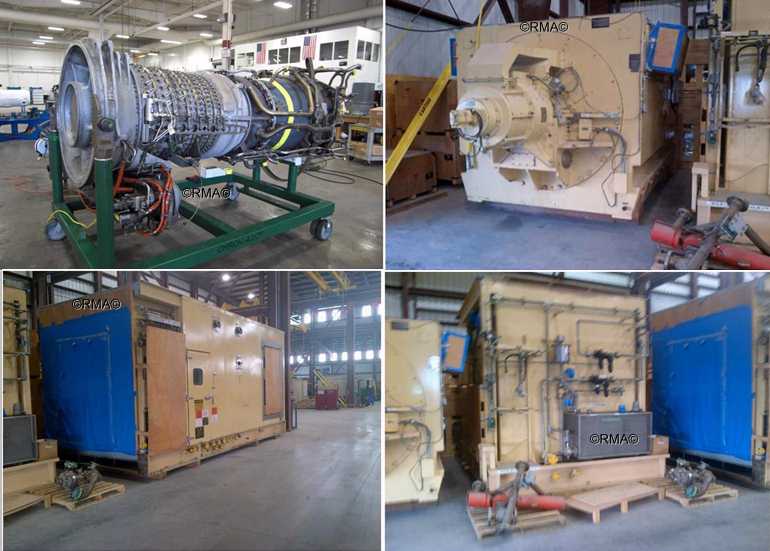

The LM2500 is a simple cycle, two shaft engine consisting of a gas generator and a power turbine. Made in 1992. Generator is directly coupled to the Power Turbine Flange for 50 Hz. The LM2500 features variable geometry in the compressor, an annular combustor, air-cooled turbine blades and vanes, and a power turbine designed to provide high efficiency over a wide range of output power. Modular construction simplifies field repair and replacement. The LM2500 gas generator incorporates a 16-stage axial-flow compressor capable of reaching 18:1 pressure ratio. Inlet guide vanes and adjustable stator vanes on the first six compressor stages provide for efficient operation over the entire operating range. The LM2500 is manufactured with corrosion resistant coatings to extend hotsection life.
Gas Turbine Aerodrivative LM2500PE zero hour refurbished by large experienced independent company which provides a full spectrum of services from design engineering of parts, castings and core development, to machining, coatings, repairs and field services for LM series engines.
Scope of Supply:
- Gas Turbine Type : LM2500PE
- Power Output (ISO) : 22.34 KW @ Generator Terminal
- Fuel Type : Liquid & Gas Fuels (dual firing)
- Hours of Operation : 0 (zero) - refurbished in Q2-2011
- Generator : Brush Electric Machines LTD. BADX 7-167ER 11.0kV, 50 Hz,
- 3 Phase, 3000rpm, Air Cooled Type
- Coupling : Power Turbine to Generator
- L. O. System : GT L.O. Tank 600L, w/GT Driven Lube Pump
- Generator L.O. Tank 800L, w/Gen. Shaft dr. Pump
- Fuel System : Fuel Pump, Filter, Fuel Control Valve Fuel SO Valve Flow Meter
- Water Wash : Cleaning Tank, Nozzle Spray Manifold
- Hyd. Start : Hydraulic Lube Tank 150L, Charge Pump, Circ. Pump,
- Hydraulic Oil Cooler, Electric Motor
- Control System : Net Con 5000 Ver. 2.02-5
- Vibration System : Bentley Nevada
Exclusion scope of supply:
- Exhaust silencer, a flex joint, a transition section and exhaust stack
- Air Filtration System and metal beam support system for the air filtration housing.
- Metal beam support
Note: The warranty can be reinstated for an additional cost of $375.000 USD
Contact Milt Fyre 503-351-9898 or milt@rmaglobal.com
