4.6 MW Municipal Waste Thermal Reduction and Power Generation Equipment
For Sale

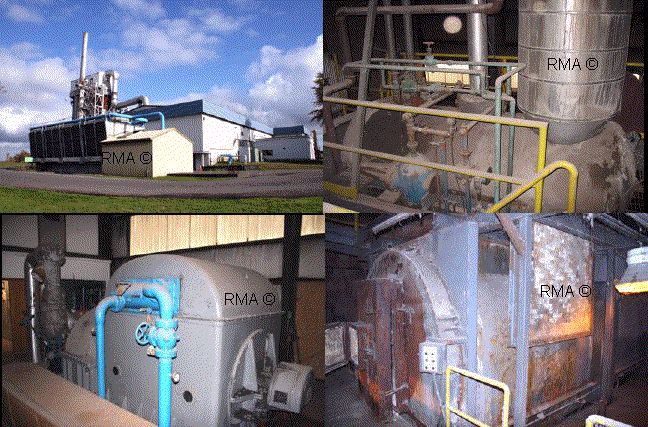

4.6 Municipal Waste Thermal Reduction and Power Generation Equipment. This NW plant operated from 1987 until 1996, when it was shut down for reasons relating to environmental regulations, and the following equipment is believed to all be in good working order.
Consumat Incinerator & Ash Cleanout System
- Gas fueled, with Eclipse forced air burners
• Charging Rate: 1,400 to 1,900 lbs/hr (10 Hour Day)
- Approx. Weight: 55,000lbs
Cleaver Brooks Boilermate Deaerator
- Deaerator Column: 50 psig ASME steel shell, copper nickel liner
- Storage Tank: 50 psig ASME vessel, 1/4” steel
- Accessories: tank relief valves, overflow drainer, steam pressure reduction
valve, floar operate make-up water control valve
GE Marine AC Turbine-Generator Equipment
- Turbine: FSN type, 4.6 MW capacity, 5,600 rpm. Manufactured in 1946,
refurbished in 1987, operated till plant closed in 1996. In good working
order.
- Generator: 60 Hz ATB-2 pole type, 4.6 MW capacity, 5,600 rpm
- Controls included (new in 1987)
Miscellaneous Equipment
- Incinerator Smokestack and Bag House
- Lime Silo: 25,000 gal/3,400 cu ft
- Assorted metal stairways/catwalks
- Plate Heat Exchangers
- Bell & Gossett ‘U’-type Heat Exchangers
- GE 220/440 TriClad Induction Motors
with related pumps and piping
- Water cooling radiation system
- Assorted motors, transformers,
control panels, piping and ductwork
