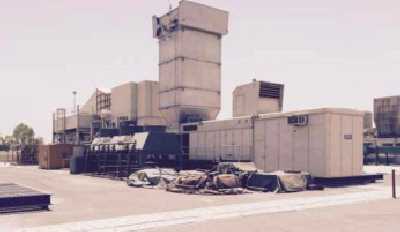

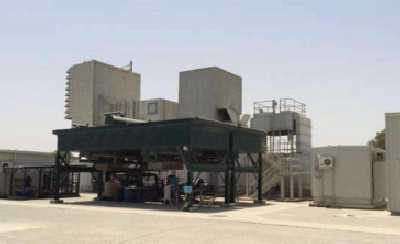

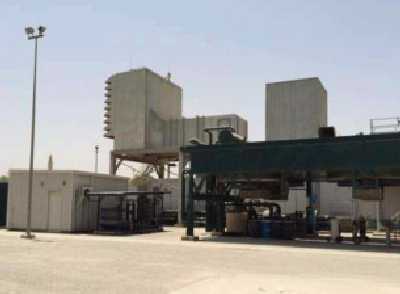

This 80MW Powerplant consists of 2 each 40MW GE Frame 6B (MS6001) Gas Turbine Generator Sets, Dual Fuel (Natural Gas and Fuel Oil), 50Hz. Dry Low Nox. Rated 42.1MW, heat rate 11,227 kJ/kWh. 5,163 RPM. 17 stage compressor. Unit 1, 93,000 hours, 890 starts, commissioned 1992, made by Kains Energie. Unit 2, 83,000 hours, 1,400 starts, commissioned 1996, made by GE.
| Gas
Turbine Model Gas Turbine Type Gas Turbine output Heat Rate Pressure ratio Mass flow Turbine Speed Type of Combustion System Turbine Speed Turbine Exhaust Temperature Compressor Number of stages Unit Transformer Rating |
General Electric
Frame 6 MS6001B 42.1 MW 11,227 kJ/kwh 12.2:1 141.1 kg/sec 5,163 RPM Dual Fuel (GAS, Fuel Oil) 5,163 RPM 548 °C 17 Staqes 34000/11000V 44MVA |
 |
 |
 |
