34MW Wartsila Power Plant for Sale
50Hz. 11kV  Natural Gas
Produces Steam and Hot Water



Contact Milt Fyre   503-351-9898 or milt@rmaglobal.com

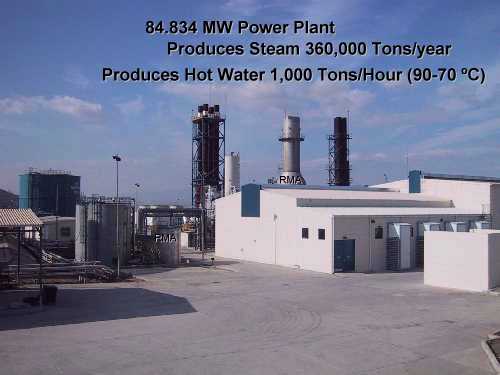

This is a complete Wartsila Power Plant for sale.  Only the smaller gensets are for sale, to be moved.   Built in 2005.  It consists of 3x16.638MW Wartsila W18V50DF engine generator sets running primarily on natural gas and 4x8.73MW Wartsila W20V34SG Natural Gas Engine Generator sets.  (NOTE: ONLY THE 8.73MW Wartsila and associated equipment is for sale, include the boiler and steel structures.  )   The total plant produces 360,000 tons of steam per year and 1,000 tons/hour of hot water (90º-70ºC).   (Contact us for the exact identification of the equipment for sale.)   See equipment details and images below.








MAKE                                DESCRIPTION QTY RUNNING HOURS DATE OF START
WARTSILA W18V50DF (Dual Fuel), 16.638 kwh*3=49.914 kW capacity, (Fuel: %99 Natural Gas, %1 LFO) 3 46,000 4/1/2005
7/29/2005
5/24/2005

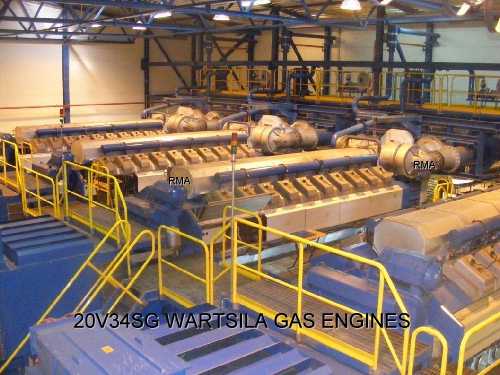

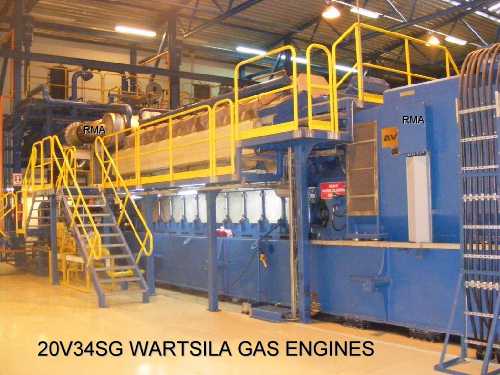

W20V34SG (Spark Gas), 8.730 kwh*4=34.920 kW capacity, (Fuel: %100 Natural Gas) 4 46,000 11/16/2005
ABB GENERATORS of  18V50DF 22.625 kVA, 50 Hz.,
 0,8 p.f., 11.000 V output
3 73,000 8/31/2001
AVK GENERATORS of 20V34SG 10.913 kVA, 50 Hz.,
0,8 p.f., 11.000 V output
4 46,000 11/16/2005
AVK NEUTRAL CUBICLES of 20V34SG 4 46,000 11/16/2005
BEST STEP-UP TRANSFORMERS of 18V50DF 11kV/ 33kV 23MVA ONAN/ONAF 33 kV, 9 STEPS OUTPUT  3 73,000 8/31/2001
HILKAR NEUTRAL CUBICLES of 18V50DF 3 73,000 8/31/2001
BEST STEP-UP TRANSFORMERS fof 20V34SG     11kV/33kV 11 MVA ONAN/ONAF 33 kV, 5 STEPS OUTPUT  4 46,000 11/16/2005
HILKAR NEUTRAL CUBICLES of 20V34SG 4 46,000 11/16/2005
BEST STEP-DOWN TRANSFORMERS for LV SYSTEM     33kV/380V 2500 kVA ONAN 380V, 5 STEPS OUTPUT  2 73,000 8/31/2001
ALFA LAVAL SEPARATORS (LUB-OIL) of 18V50DF                          1*LOPX 710 MODEL                                3 73,000 8/31/2001
ALFA LAVAL SEPARATORS (HFO NO:6)                           3*FOPX614 3 24,000 8/31/2001
SPERRE START AIR COMPRESSORS of 18V50DF and 20V34SG 4 DF: 6000           SG: 1500 DF: 31.08.2001       SG: 16.11.2005
TAM ROTOR COMPRESSORS (WORKING AIR) 2 43,000 11/16/2005
AALBORG BOILERS after 18V50DF 13 Barg Satureted Steam, 8,5 ton/hrs production 3 73,000 8/31/2001

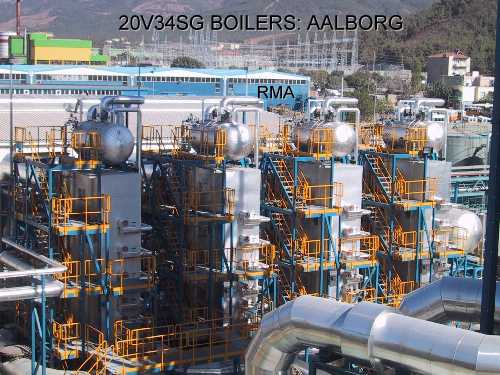

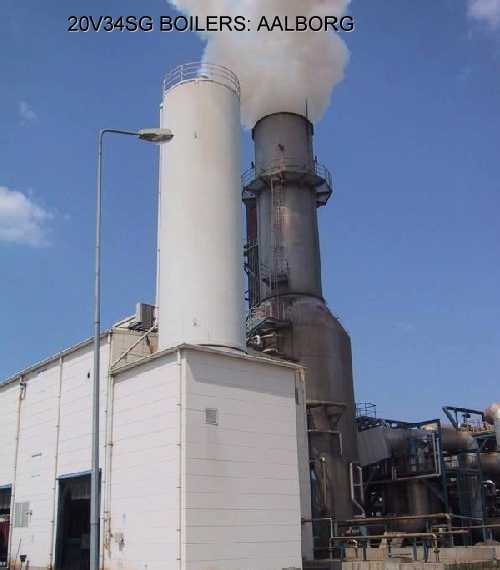

AALBORG BOILERS after 20V34SG 13 Barg Satureted Steam, 4,7 ton/hrs production 4 46,000 11/16/2005
HAMON COOLING TOWER of 18V50DF 3 73,000 8/31/2001

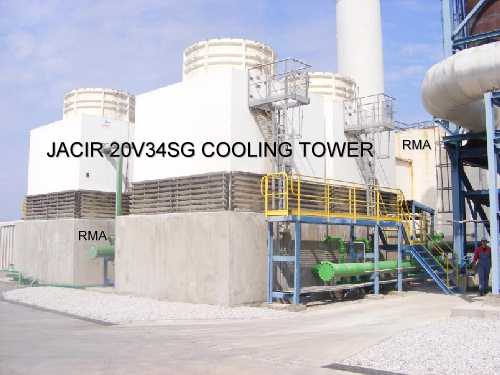

JACIR COOLING TOWER of 20V34SG 4 46,000 11/16/2005
KVAERNER Desulphurisation (DeSOx) SYSTEM based on the use of limestone (CaCO3) slurry to remove sulfur oxides from the exhaust gas - Scrubber (Avesta Grade SMO 254) - Pumps - 160 m³ CaCO3 silo and related equipments.  1 27,000 start:31.08.2001        -                         stop:29.07.2005













Contact Milt Fyre   503-351-9898 or milt@rmaglobal.com
