12MW DEUTZ-Natural
Gas Co-Generation Plant
Used 50Hz. 4MW Steam
Milt Fyre 503-351-9898 or milt@rmaglobal.com

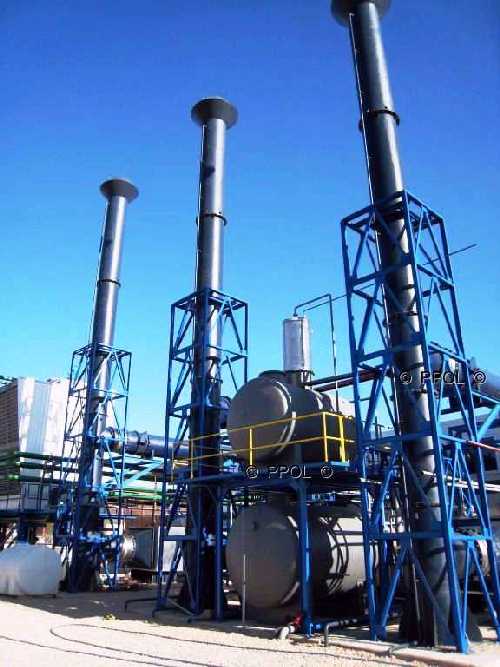

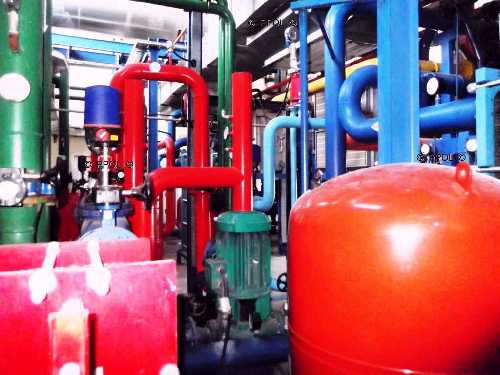

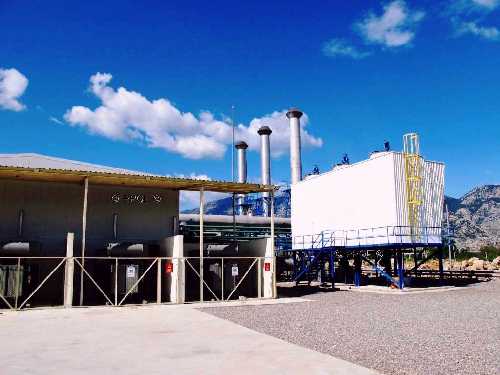

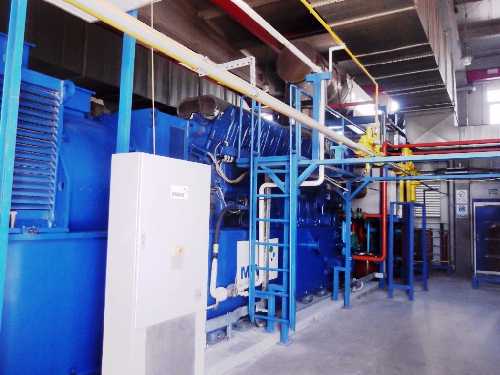

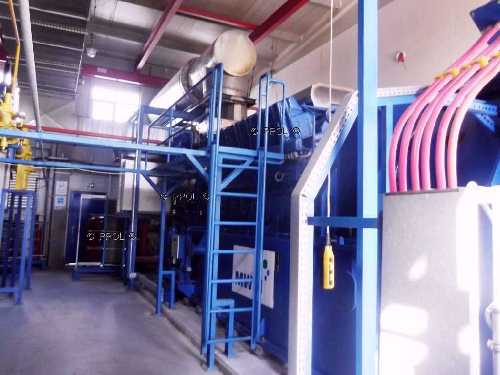

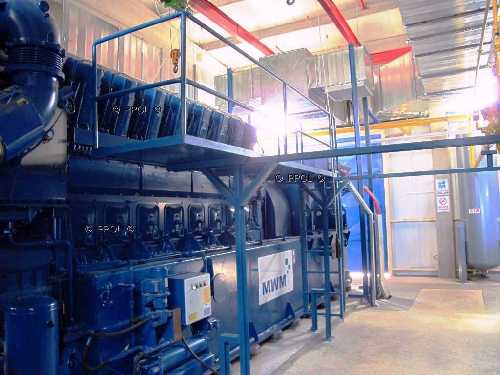

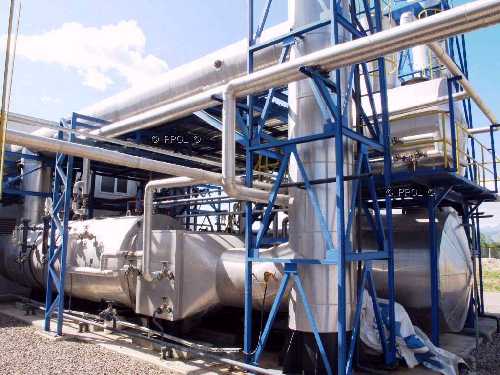

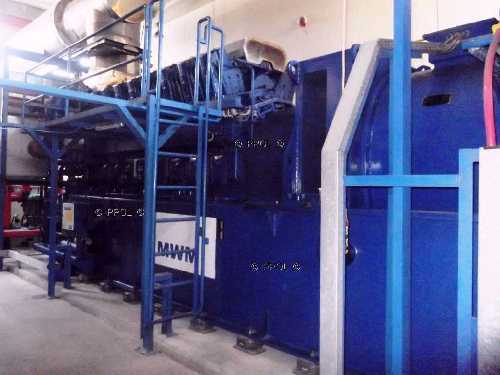

12MW Deutz-Natural Gas Co-Generation Plant. Comprised of 3 each 4MW Deutz natural gas engine generators, 400 V, 50Hz. 3 phase. Equipped with an electric transformer ranging from high to medium exit. The EGs are controlled by a unique GE board with a microprocessor. Also there are 3 steam generators operating on the exhaust heat of the engines, generating a combined output of 9 tons of steam per hour, which can be transferred over steam pipes to a range of 1 km and at a pressure of 15 bars. The steam generators were built by local manufacturer and have the "Universal" brand. Also included a MWM 4MW steam boiler for hot water production to 85 degrees and a dedicated boiler for steam generating. 2009 for fabrication & installed in 2010. Total running time approximately 16,000 hours. Excellent condition.
|
|
|
|
|
|
|
|
Milt Fyre 503-351-9898 or milt@rmaglobal.com
